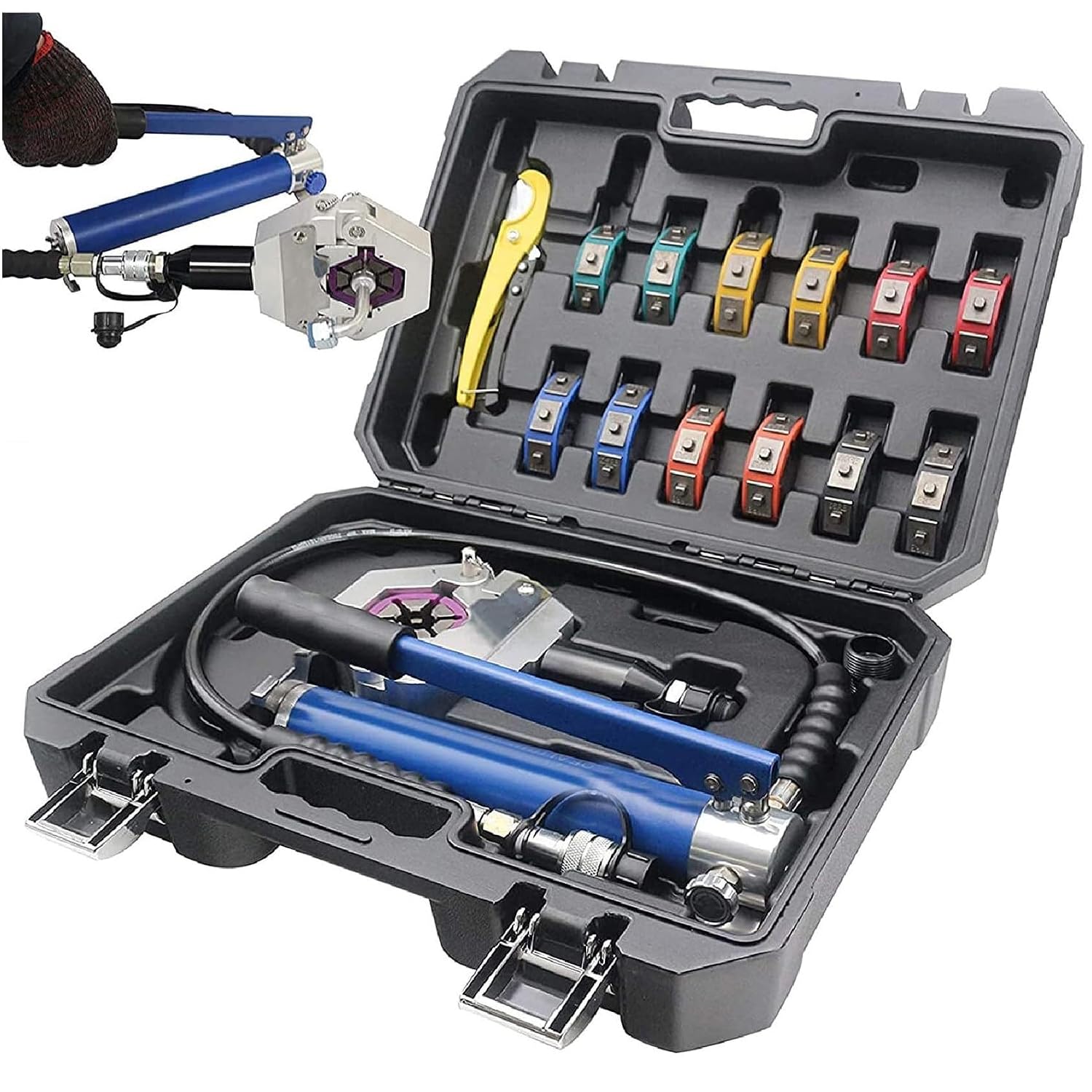

Air Conditioning Repaire Ac Hose Crimper, Hydraulic Clamps for Barbed and Beaded Hose Fittings, with 7 Die Set

Specification:Item Type: Auto Manual A/C Hose Crimper KitMaterial: Aluminium AlloyStroke: 15MMCrimping Range: 3/8-7/8inCrimping Form: Point type hexagonal confining pressureIncluding 7 Die Sets for Hose Sizes:Purple Set- #6 (5/16in )Red Set- #8 (13/32in)Yellow Set- #10 (1/2in)Green Set- #12 (5/8in)Black Set- #6 SRB (5/16in)Purple Set- #8 SRB (13/32in)Orange Set- #10 SRB (1/2in)Uses:1.Remove pin and "Open" top yoke.2.select correct die set (refer to back page for description )3.insert the die into joke4.position fitting and hose in the crimper and close the yoke.5.insert pin securely .6.Turn Body of tool clock wise until dies are snug against hose fitting .7. Turn hydraulic valve to "closed "position .8.Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop .9.Once crimp is complete,turn hydraulic valve to OPEN position.Package List:1 Set of A/C Hose Crimper Kit (16pcs)1 x Tool Box1 x Manual1 x Hex Wrench4 x Gasket

• 【DURABLE MATERIAL】: Made of aluminum alloy material to ensure durability. Die hardness up to 53 HRC for better crimping.
• 【MANUAL PISTON VALVE】: The piston manual valve control allows you to have more pressure than before, and you don't have to worry about gasping while using this curling iron
• 【DETACHABLE HYDRAULIC】: This Handheld Detachable Hydraulic Manual Air Conditioning Hose Crimper is easy to use. Easily make new hoses needed for other repairs
• 【QUICK AND EASY SETUP】: With just a few simple steps, you can crimp your hose in no time. Select the correct die, insert the pin, turn the tool's body clockwise until dies are snug against hose fitting, turn the valve to work position, pump the handle until stop, and you're done!
• 【WIDE RANGE OF APPLICATIONS】: The crimping tool has a base that can be mounted on a bench for ease of use, or the base can be secured with any vise, Custom Project Car AC Line
